Definition
Evidence of destruction exposing the interior of a structure to the elements, which do not prevent the structure from performing its function; the structure is still standing and theoretically a human could still enter it.
Layer details
AI Product | Building Structures, Damage Classifications |
|---|
Status | Alpha |
Includes | - Buildings damaged by fire, treefall, wind, or other events
- Areas on completed buildings missing significant material layers, such as a hole
- Temporary repairs such as tarps and boarded up areas are signs that a building has structural damage
|
Excludes | - Buildings under construction
- Buildings under construction covered with synthetic (plastic) underlayment material
- Buildings with only 1 wall standing - this is considered building structural loss
- Collapsed buildings with no standing structural features - those are building structural loss
- Roofs detached by a damage event. These are considered junk/wreckage, no longer a roof
|
Product-specific Terms | |
Building with Structural Damage vs Structural Damage

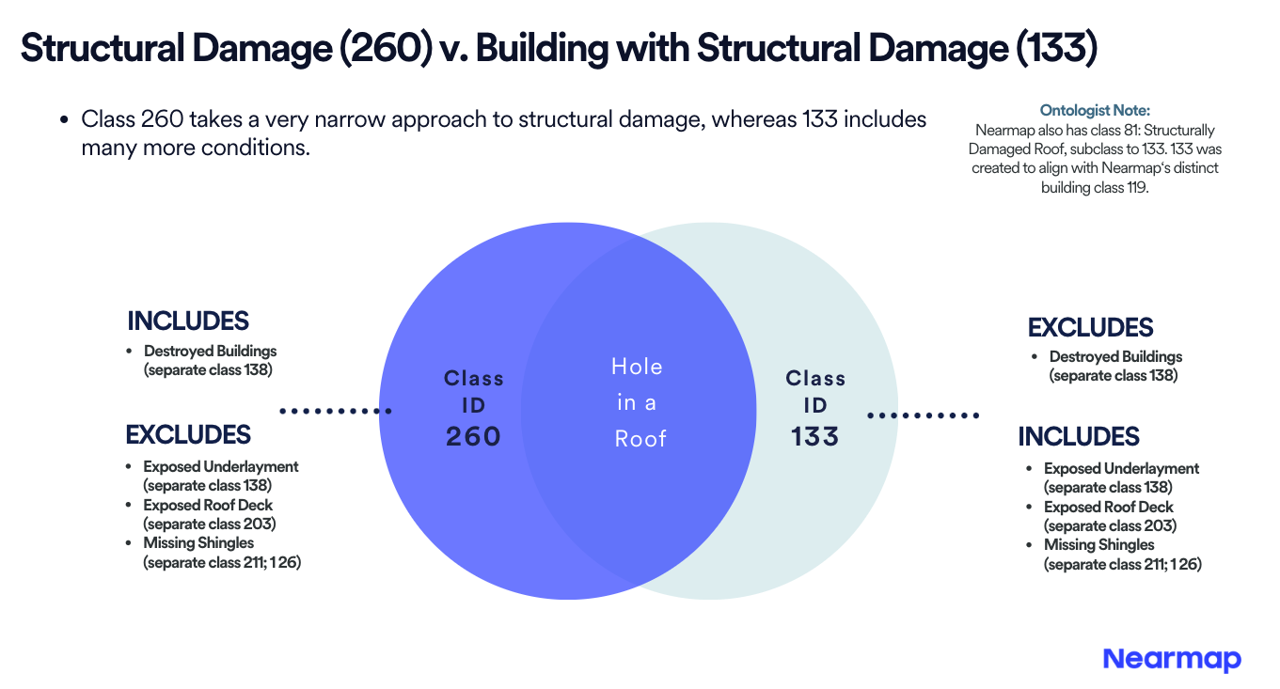

The Structural Damage class is a composite class exposed via the AI Feature API. Like this class, it also covers an entire structure (building), but includes very few conditions as shown in the illustration below.
Examples
https://apps.nearmap.com/maps/#/@39.1140089,-120.9678404,20.69z,0d/V/20210810
